ESHX12832-123 is customized STN dot maxtrix lcd display 128X32
dots, 1/33 Duty,1/6 Bias, , 6:00 clock,driving ICST7567-G4
,assembly type COG+FPC,Operating Temp: '-20°C~70°C ,storage Temp
-30℃~+80℃
A:Product Parameter
| LCD Number | ESHX12832-123 |
| display mode | STN/Negative/transmissive |
| DOTS | 128X32 |
| View angle | 6:00 CLOCK |
| Drive method | 1/33 Duty,1/6 Bias, |
| storage Temp | -20℃~+70℃ |
| Operating Temp: | -10°C~60°C |
| ASSEMBLY TYPE | COG+FPC |
| Driving IC | ST7567-G4 |
| outline size | 59.9X26.5 |
| AA size | 53.74X13.42 |
B: Product Picture

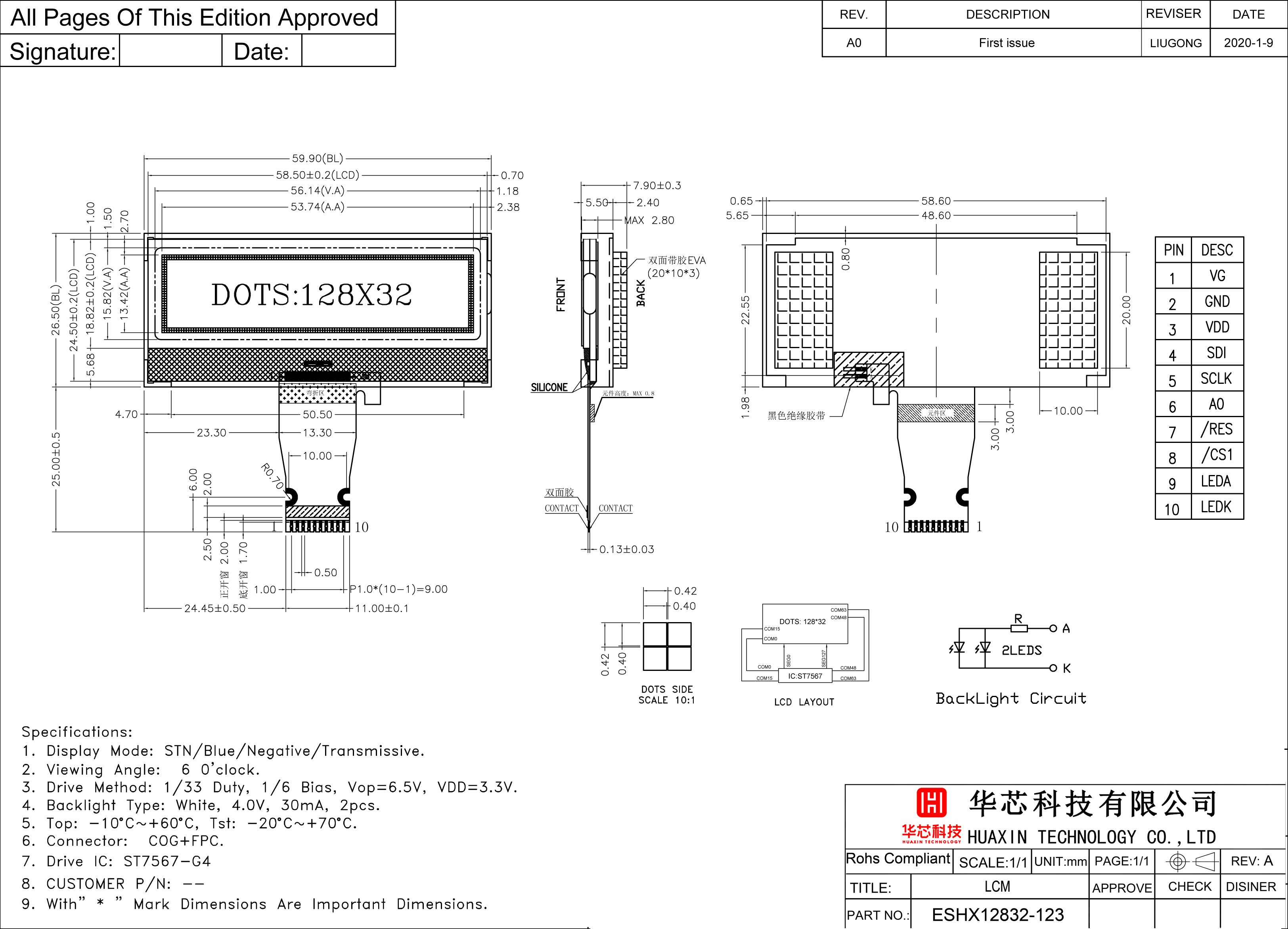

C:Drawing
D: LCD Product Knowledge
LCD Advantages:
Tooling charge and unit price are much cheaper than TFT and oled.
LCD Disadvantages
LCD is cutomized but TFT and oled lcd size are standard one , LCD
is mono and narrow view angle .lower contrast ratio
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has
effeciency and stable quality
4. professional engineers and production leaders who works in lcd
field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development,
producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
Annual Production
Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
LCD Producton
Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit:thousands of
logarithms/Day |
LCM Producton
Capacity | 70 | 150 | 300 | 450 | 450 | Unit:Thousand
piece/Day |
Backlight Producton
Capacity | 100 | 200 | 300 | 500 | 500 | Unit:Thousand
piece/Day |
OLED Producton
Capacity | 10 | 20 | 30 | 40 | 50 | Unit:Thousand
piece/Day |
G: Product Application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
H: Mono LCD Display Characteristics
1.Display Type: MONO LCD is a type of liquid crystal display that
can only produce images in a single color, typically black and
white or grayscale.
2.Pixel Structure: MONO LCDs have a simple pixel structure with a
single light-modulating element per pixel, as opposed to the more
complex RGB (Red-Green-Blue) pixel structure of color LCDs.
3.Contrast and Brightness: MONO LCDs generally have higher contrast
ratios and can achieve higher brightness levels compared to color
LCDs, as they do not require color filters or backlighting.
4.Power Consumption: MONO LCDs typically have lower power
consumption compared to color LCDs, making them suitable for
battery-powered applications.
5.Response Time: MONO LCDs often have faster response times than
color LCDs, leading to better performance for fast-moving or
dynamic content.
6.Cost: MONO LCDs are generally less expensive to manufacture than
color LCDs, making them a more cost-effective solution for certain
applications.
7.Applications: MONO LCDs are commonly used in devices that require
simple, low-cost, and efficient display solutions, such as
calculators, watches, electronic books (e-readers), and some
industrial control panels.
8.Limitations: MONO LCDs are limited to displaying images and text
in a single color, which can be a drawback for applications that
require more vibrant or complex visual information.
I:Are there any disadvantages to using MONO LCD technology in
industrial control panels?
1.Limited Visual Information:
2.Reduced Clarity and Visibility:
3.Compatibility with Graphics-Intensive Applications:
4.Potential Ergonomic Challenges:
