    6.6 Inch TFT LCD Display Module, 4098×2560 Resolution, 50pins For 3D Printer

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : ESHX2011A0
    Certification : ISO14001/ ISO9001/IATF16949
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100K per month
    Delivery Time : 6weeks~8weeks
    • Product Details
    • Company Profile

    6.6 Inch TFT LCD Display Module, 4098×2560 Resolution, 50pins For 3D Printer

    ESHX2011A0 is 6.6 inch TFT display module ,resolution is 4098×2560 and brightness is 350c/d and interface is 50pins/mipi ,apply for 3D printer
    A:Product Parameter
    part No:ESHX2011A0
    Size 尺寸6.6inches
    Resolution 分辨率4098×2560pixels
    Active Area 显示区域143.43 × 89.6mm
    Outline dimension 外观尺寸154.36 × 99.1mm
    Driving ICST7789V
    Interface 接口50pins MIPI
    View Angle 可视角度IPS ,free
    Operating temperature 工作温度0~+70°C
    Storage temperature 储存温度-10 ... +80°C
    applicationapply for 3D printer

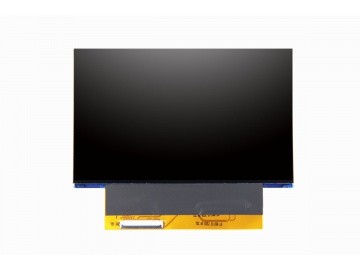

    B: Product Picture


    6.6 Inch TFT LCD Display Module, 4098×2560 Resolution, 50pins For 3D Printer6.6 Inch TFT LCD Display Module, 4098×2560 Resolution, 50pins For 3D Printer6.6 Inch TFT LCD Display Module, 4098×2560 Resolution, 50pins For 3D Printer


    C:Drawing


    ....................................................

    D:TFT Product Knowledge


    tft substrate input and CF substrate input flow chart as below


    TFT structure as below


    E: Company Information

    Huaxin Advantage:
    1. factory base located at inland city which has cost effective
    2. most advanced new equipment which can keep quality stable
    3. most processes using fully automatic equipment which has effeciency and stable quality
    4. professional engineers and production leaders who works in lcd field for more than 20 years
    5. self design for customized product

    our certificates
    1.ISO14001/
    2.ISO9001/IATF16949
    3.SGS of LCD module


    • Huaxin Technology (Enshi)Co.,LTD
    • Hubei.Enshi
    • Date of foundation:2009
    • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
    • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
    • LCM includes: COB,TBA, COG,TP,LED backlight and other series
    • register capital:twenty million
    • current staff:500+
    • RD accounts for 10%
    • QC accounts for 15%

    F: Production Capacity


    Annual Production
    Capacity
    2021 (Current)2022 (Goal)2023 (Challenge)2024 (Challenge)2025 (Challenge)Remark
    LCD Producton
    Capacity
    4.59999Unit:thousands of
    logarithms/Day
    LCM Producton
    Capacity
    70150300450450Unit:Thousand
    piece/Day
    Backlight Producton
    Capacity
    100200300500500Unit:Thousand
    piece/Day
    OLED Producton
    Capacity
    1020304050Unit:Thousand
    piece/Day

    G: Product Application


    1. car navigation&printer

    2. video call & advertising

    3.Automotive &medical devices

    4.fitness equipment&handheld devices

    5.industial control and home applicance


    H: TFT Display Characteristics


    1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.


    2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.


    3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.


    4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.


    5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.


    6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.


    7.Wide Applications:


    I: Are there any drawbacks or limitations to using TFT displays?


    1. Limited Viewing Angles:

    2. Limited Contrast Ratio

    3. Backlighting and Power Consumption

    4. Response Time and Motion Blur

    5. Limited Flexibility

    6. Limited Color Gamut
