ESHX012B7DD01 is 1.17 inch transflective oled display, display mode
is transflective and number of pixels is 184X38 and view direction
is free , 8PINS 3-WIRE SPI interface, brightness is 110cd/m2
A: Product Parameter
| Part NO. | ESHX012B7DD01 |
| Panel size | 1.17 inch transflective OLED |
| Resolution | 184X38 |
| Viewing Angle | 9:00 CLOCK |
| Operation Temperature | -20~70 |
| storage temperature | -30~80 |
| Panel Size(mm) | 35X11X0.741 |
| Active Area (mm) | 29X6 |
| Brightness(cd/m2) | 100c/d |
| Interface | 8PINS 3-WIRE SPI |

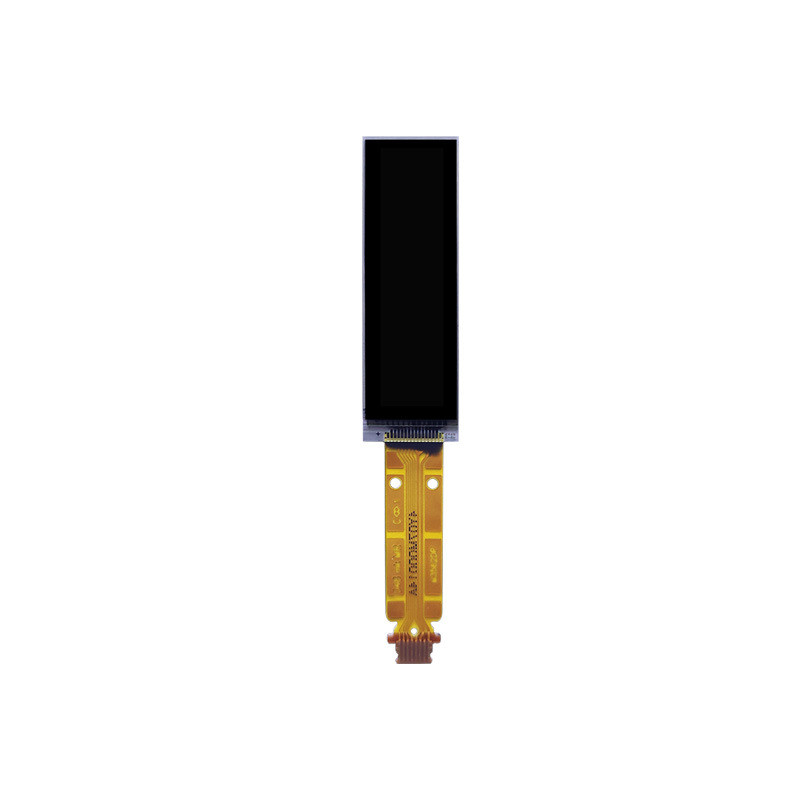

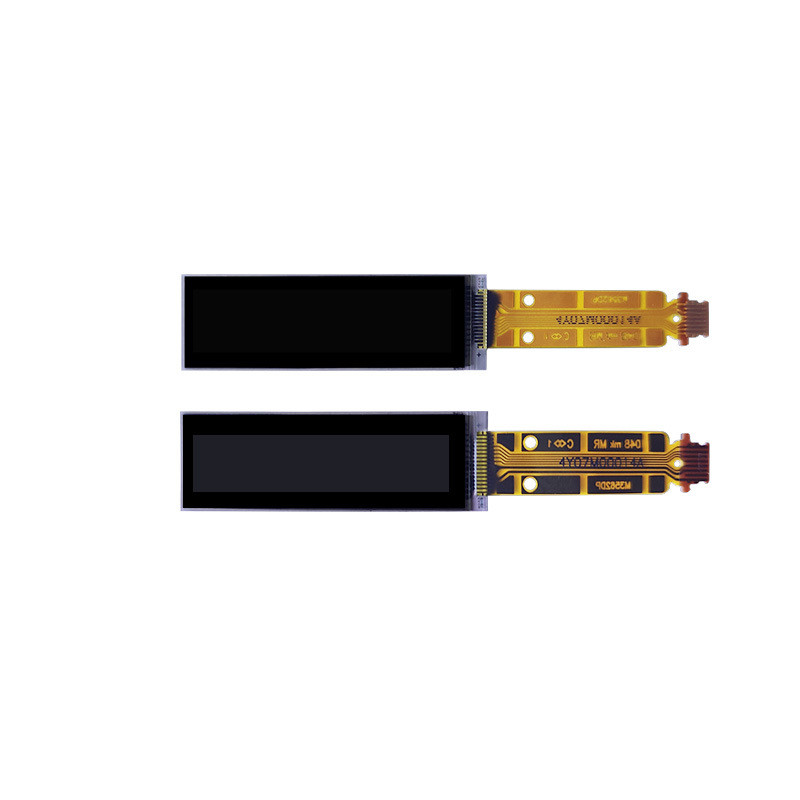

B: Product Picture
C: Drawing
......................................................................................
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
