ESHX101RWA30 is 10.1 inch tft display with mainboard and with GSM
&Android 10 system & WIFI&SIM card&GPS&headphone&
G+G touch panel
A. Product parameter
| Part# | ESHX101RWA30 |
| description | 10.1 inch tft display with mainbaord |
| GSM | with it |
| WIFI | • 8723DS WIFI+BT module, 2.4G, 802.11 b/g/n
• Bluetooth,V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
(Standard IPEX-I connector,final antenna should be matched by
antenna
factory. WiFi-BT combo module RTL8723DS, WiFi SDIO protocol, IEEE
802.11 b/g/n, 2.4G, Bluetooth V4.2 of 1,2 and 3 Mbps, uart
communica-
tion,GFSK,π/4-DQPSK,8KDPSK. More details showed in RTL8723DS
datasheet.) |
| USB | • Total 4xUSB, 1xUSB OTG, data transmission or update
• 3xUSB host |
| RS485 | UART2, default TTL, RS485 optional |
| RS232 | UART3 and UART4 TTL, RS232 optional |
| SD card | • Support TF card, SD3.0
• Support from 2GB-128GB
• Support 4bit data bus |
| SIM card | Micro SIM slot with detect and holder. Default shipment have not 4G
PCIe and Micro SIM connector. |
| external key button inputs | •USB Host
Type A USB2.0 Host, his USB connect directly from USB hub, it can
support USB keyboard, USB mouse, USB camera.
• Support 6key from ADC
• One Power on/off key |
| GPS | • Onboard ST-26-Z8LR GPS module(Default NC)
• BDS/GPS/GLONASS
• Accuracy 2.5 meter, Support AGNSS
IPEX-I connector, antenna should be matched by antenna factory, it
need
to use active antenna(3.3V) . GPS module design ICOF, 12.2X16
dimension. This module design based on 4th generation low
consumption
GNSS SOC single chip-AT6558R, it support many kinds of navigation
system, including BDS, GPS, GLONASS, GALILEO, QZSS and
SBAS(WAAS, EGNOS, GAGAN,MSAS). More detail showed at AT6558R
datasheet. |

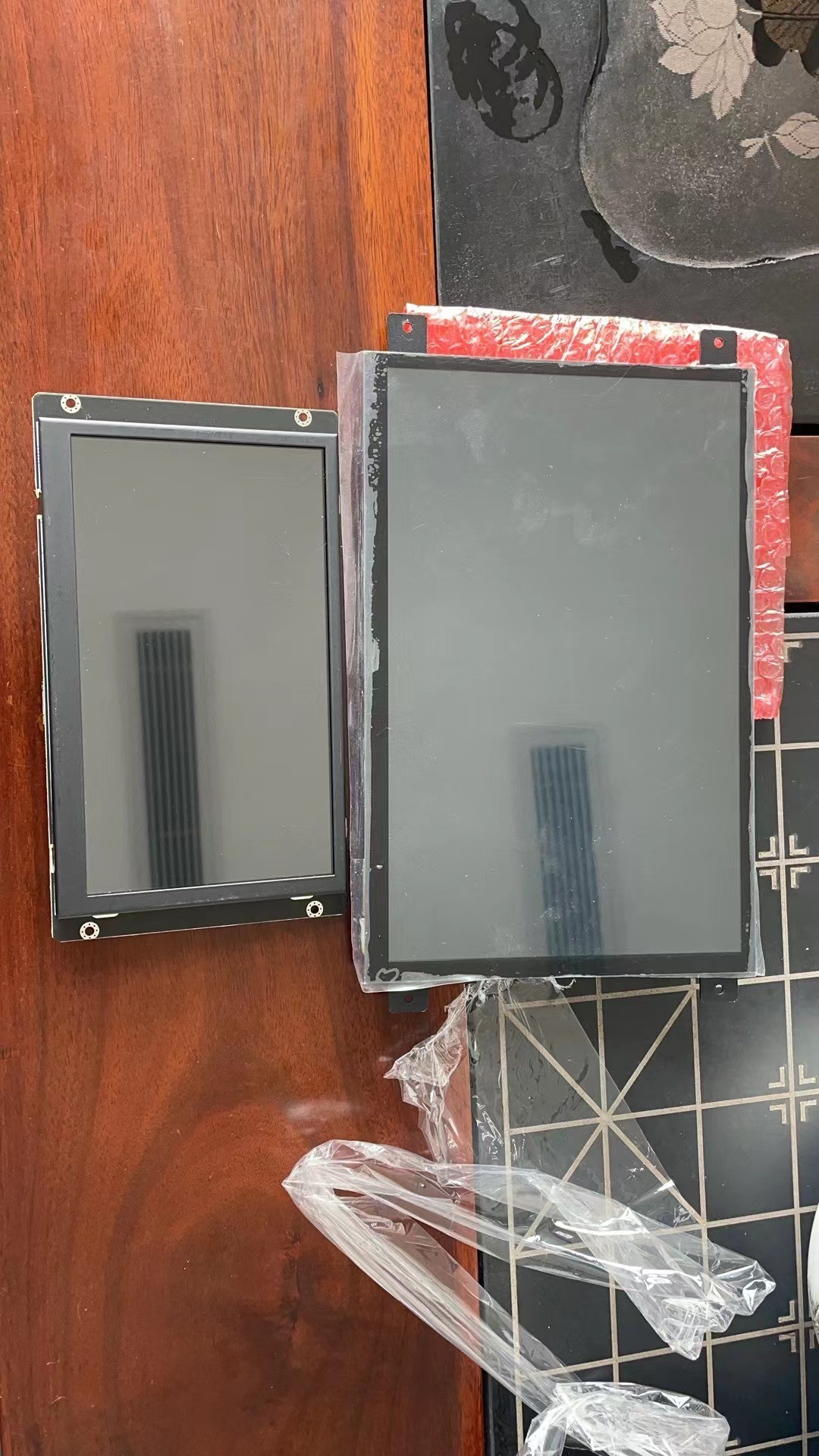

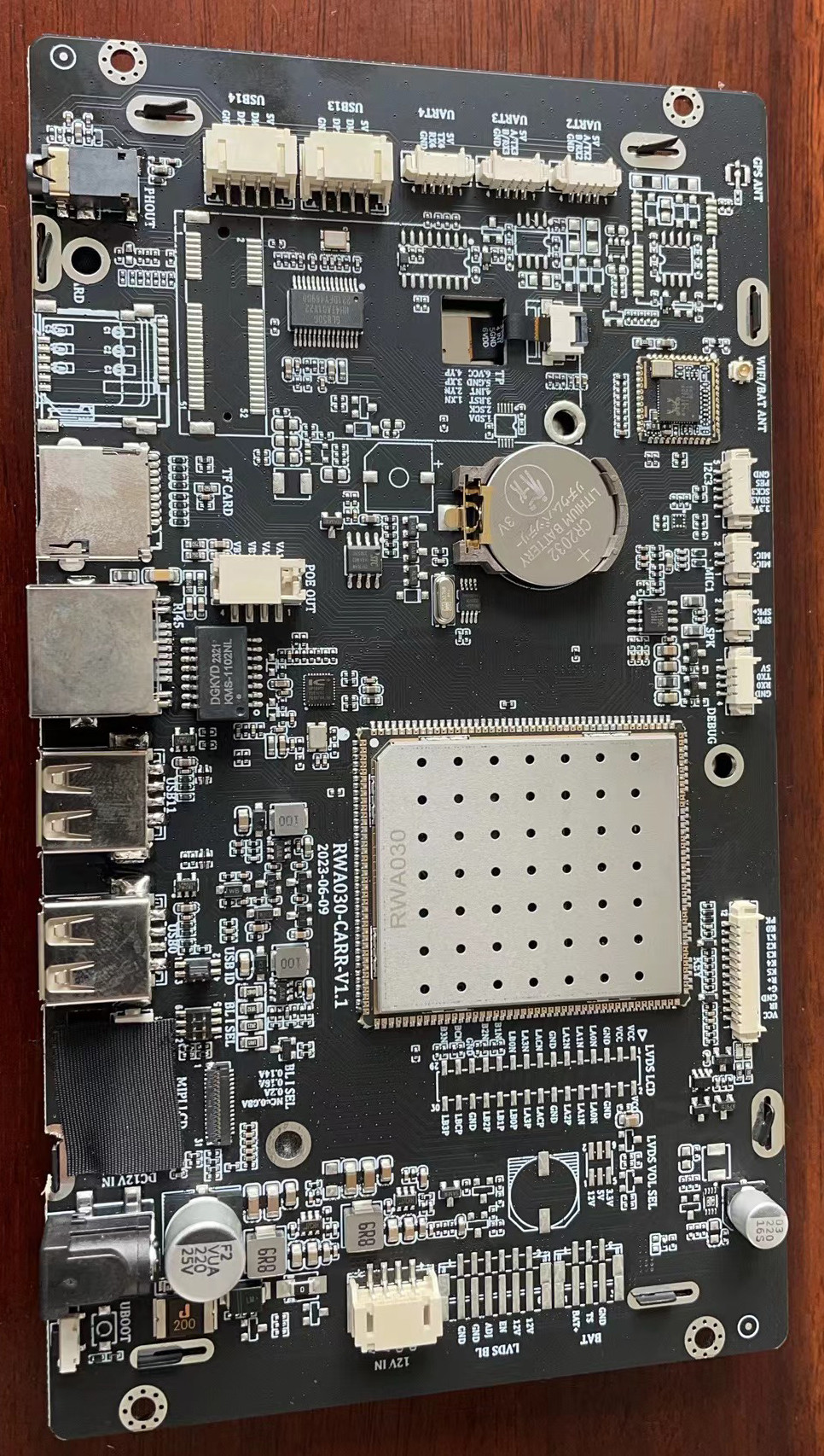

B. product picture

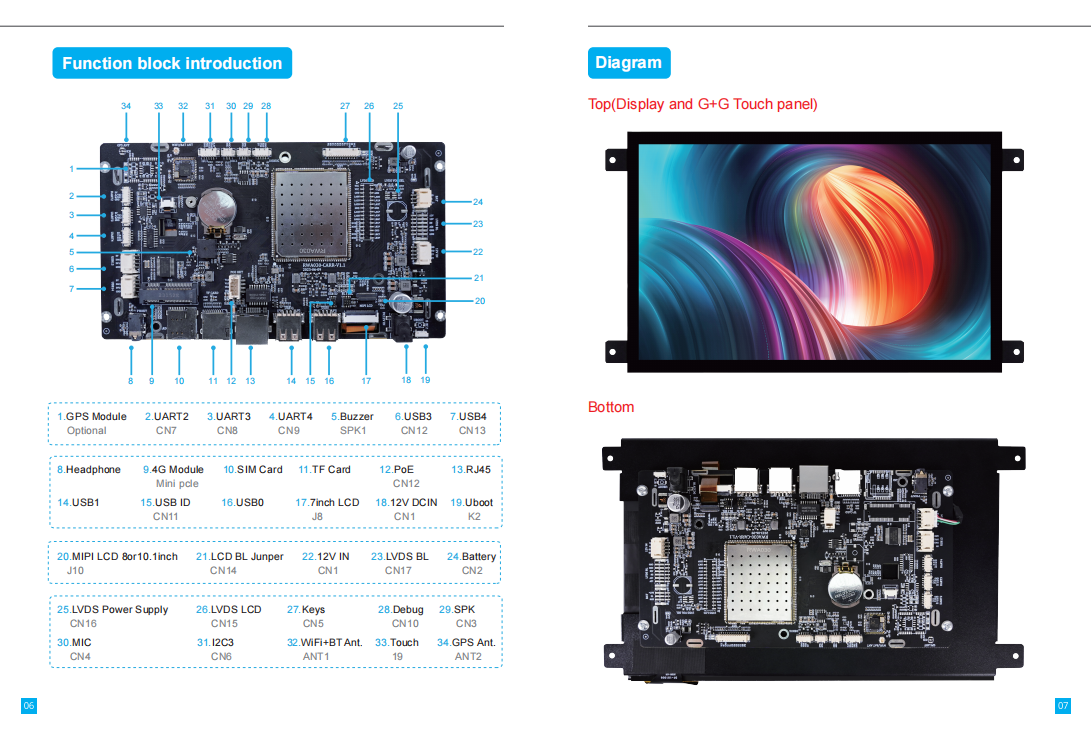

C.Drawing
D. TFT product knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
E: company information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has
effeciency and stable quality
4. professional engineers and production leaders who works in lcd
field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/ ISO13485/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development,
producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production capacity
Annual Production
Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
LCD Producton
Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit:thousands of
logarithms/Day |
LCM Producton
Capacity | 70 | 150 | 300 | 450 | 450 | Unit:Thousand
piece/Day |
Backlight Producton
Capacity | 100 | 200 | 300 | 500 | 500 | Unit:Thousand
piece/Day |
OLED Producton
Capacity | 10 | 20 | 30 | 40 | 50 | Unit:Thousand
piece/Day |
G: Product application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
