ESHX050YMM-J40 is 5 Inch Round Tft Display 1080x1080 Resolution 50
Pins MIPI Interface, brightness is 350CD/M2 apply for automative,
lcd Module Driver IC is HX8399C and view angle is free: you can download datasheet from this link:ESHX050YMM-J40 SPECIFICATION.pdf
A:Product Parameter
| Part No: | ESHX050YMM-J40 |
| Panel size | 5 inch round TFT |
| LCD type | IPS |
| Module Size | 129.808 ×133.258 |
| Display Area | 127.008× 127.008 |
| Number of Dots | 1080*1080 |
| View angle | free view angle |
| Module Driver IC | HX8399C |
| CTP Driver IC | |
| Interface Pins | 50 PINS mipi |
| LED Numbers | 6 LEDS |
| Luminance | 350cd/m2 |
| Operating Temp | -20_60 |
| Storage Temp | -30~70 |
| with or without TP | |

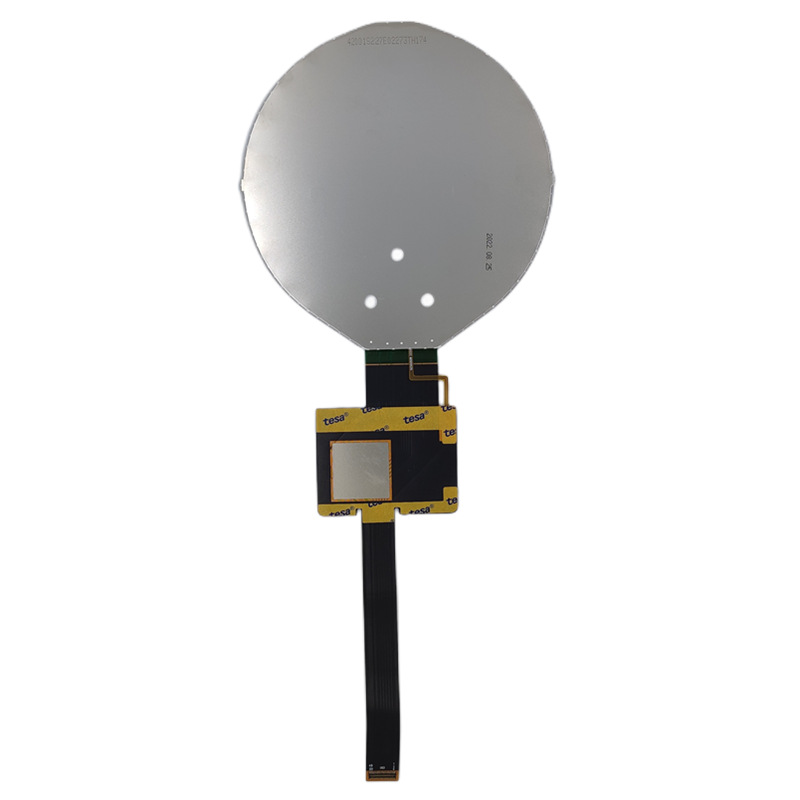

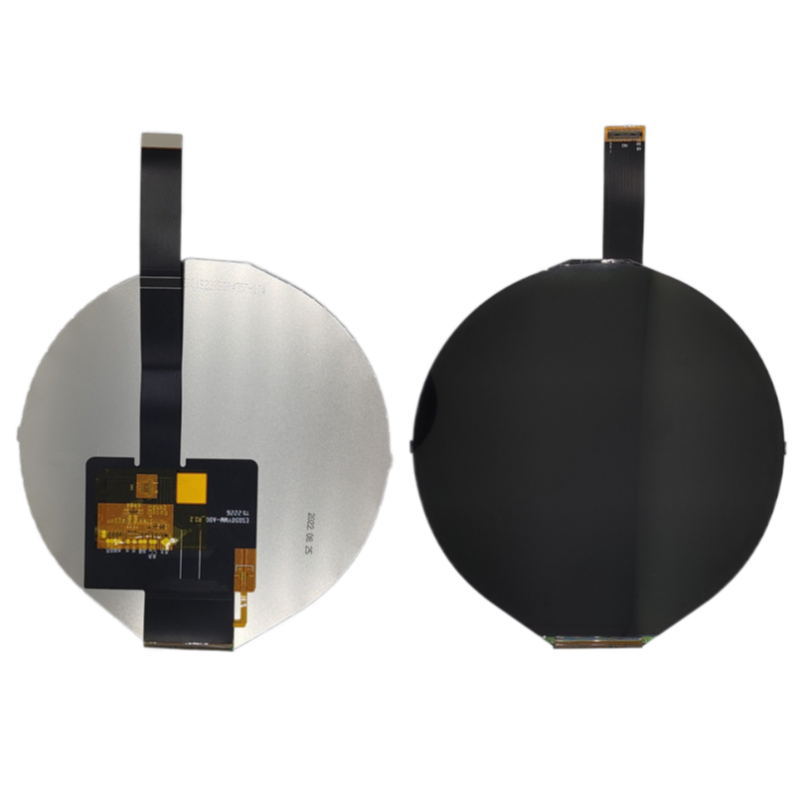

B:Product Picture
C:Drawing
D:TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
