ESHX035GQITR-06 is 3.5 inch TFT display, display mode is
transflective and number of pixels is 240X320 and view direction is
6:00 O'clock, 50 pins RGB interface, brightness is 110cd/m2
For more details, you can download complete datasheet from this
linkESHX035GQITR-06 spec.pdf
A:Product Parameter
| Part No: | ESHX035GQITR-06 |
| Panel size | 3.5 inch TFT Transflective |
| LCD type | TN |
| Module Size | 64.00*85.00*2.93 |
| Display Area | 53.64*71.52 |
| Number of Dots | 240*320 |
| View angle | 6:00 |
| Module Driver IC | ILI9341V |
| CTP Driver IC | |
| Interface Pins | RGB-16bit+SPI/50PIN |
| LED Numbers | 6LED |
| Luminance | 100cd/m2 |
| Operating Temp | -20~+70 |
| Storage Temp | -30~+80 |
| with or without TP | |
B: Product Picture

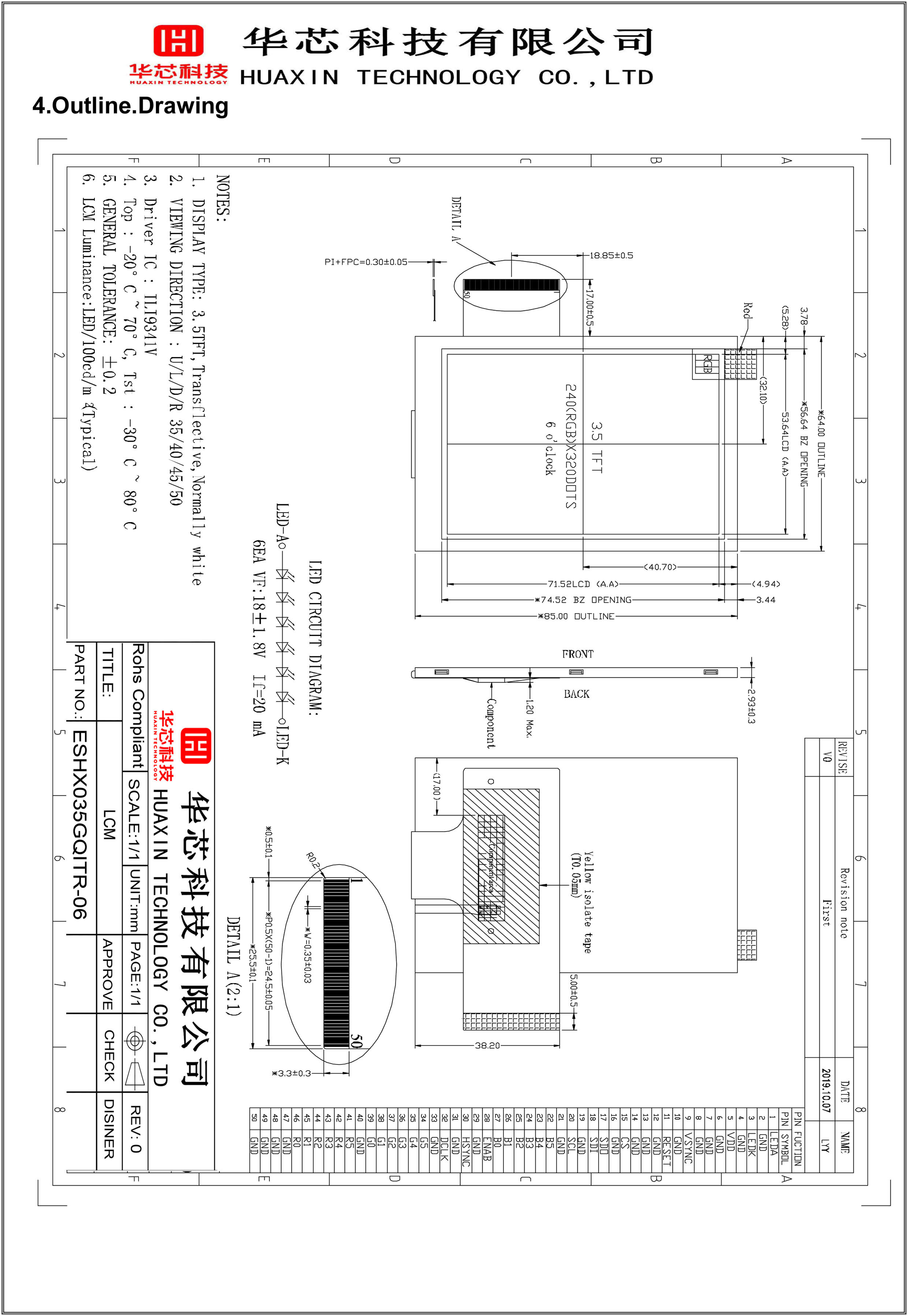

C:Drawing
D:TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
