ESHX070BAHA-38CP is 7 inch TFT module with touch panel ,1024x600
Resolution, 40 PINS LVDS interface, brightness is 420 cd/M2 TFT LCD
and lcd display Driver IC is HX8282+HX8696 and.View angle is Free
A: Product Parameter
| Part No: | ESHX070SWH-03CP |
| Panel size | 7 inch TFT |
| LCD type | TN |
| Module Size | 165.00*100.00*7.43 |
| Display Area | 154.08*85.92 |
| Number of Dots | 800*480 |
| View angle | 12:00 |
| Module Driver IC | EK9713CA+EK73002ACGB |
| CTP Driver IC | FT5426 |
| Interface Pins | 50 pins 24bit RGB |
| LED Numbers | 27leds |
| Luminance | 450cd/m2 |
| Operating Temp | -20~+70 |
| Storage Temp | -30~+80 |
| with or without TP | CTP |

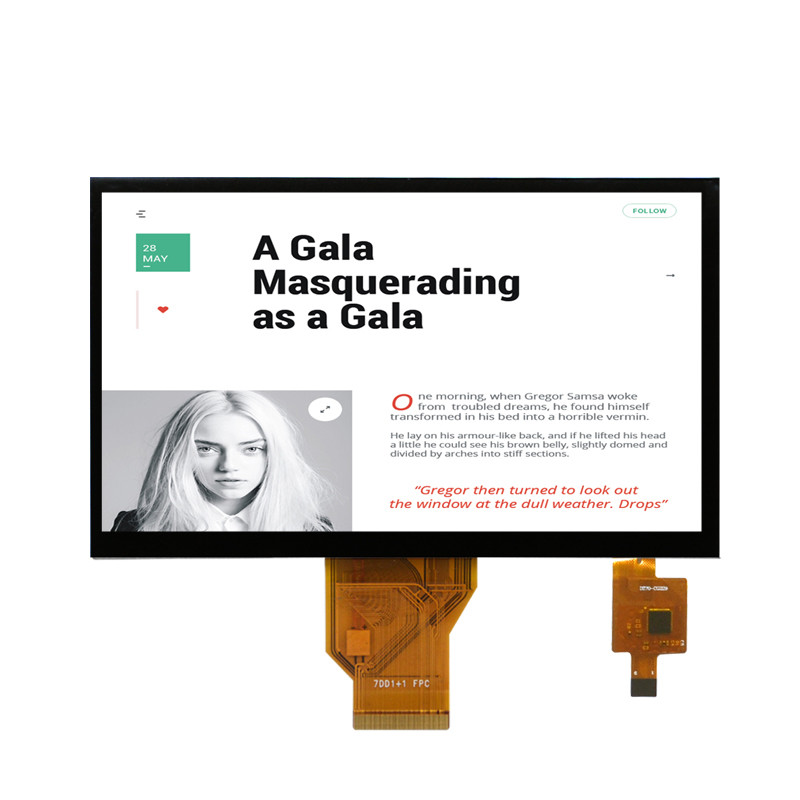

B:Product Picture
C:Drawing
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
