ESHX784001C40 is 7.84 inch Bar Type TFT display module with HDMI
Board , 400X1280 Resolution, 40 PINS RGB interface, brightness is
450cd/m2 TFT module,Module Driver IC is NV3051F and view angle is
free
A:Product Parameter
| Part No: | ESHX784001C40 |
| Panel size | 7.84 inch bar TFT |
| LCD type | IPS |
| Module Size | 67.8X205.78MM |
| Display Area | 59.4X190.08MM |
| Number of Dots | 400X1280 |
| View angle | ALL |
| Module Driver IC | NV3051F |
| Interface Pins | 40 PINS MIPI |
| Luminance | 450cd/m2 |
| Operating Temp | -20~70 |
| Storage Temp | -30~80 |
| Remark | |

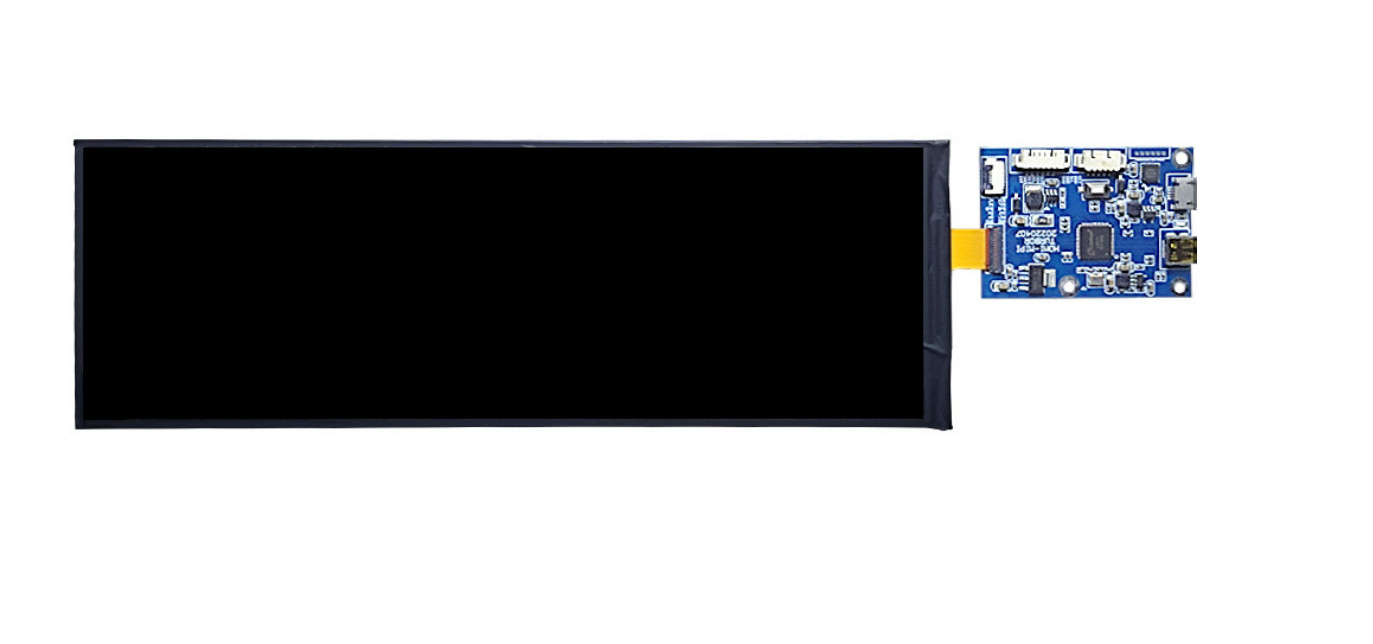

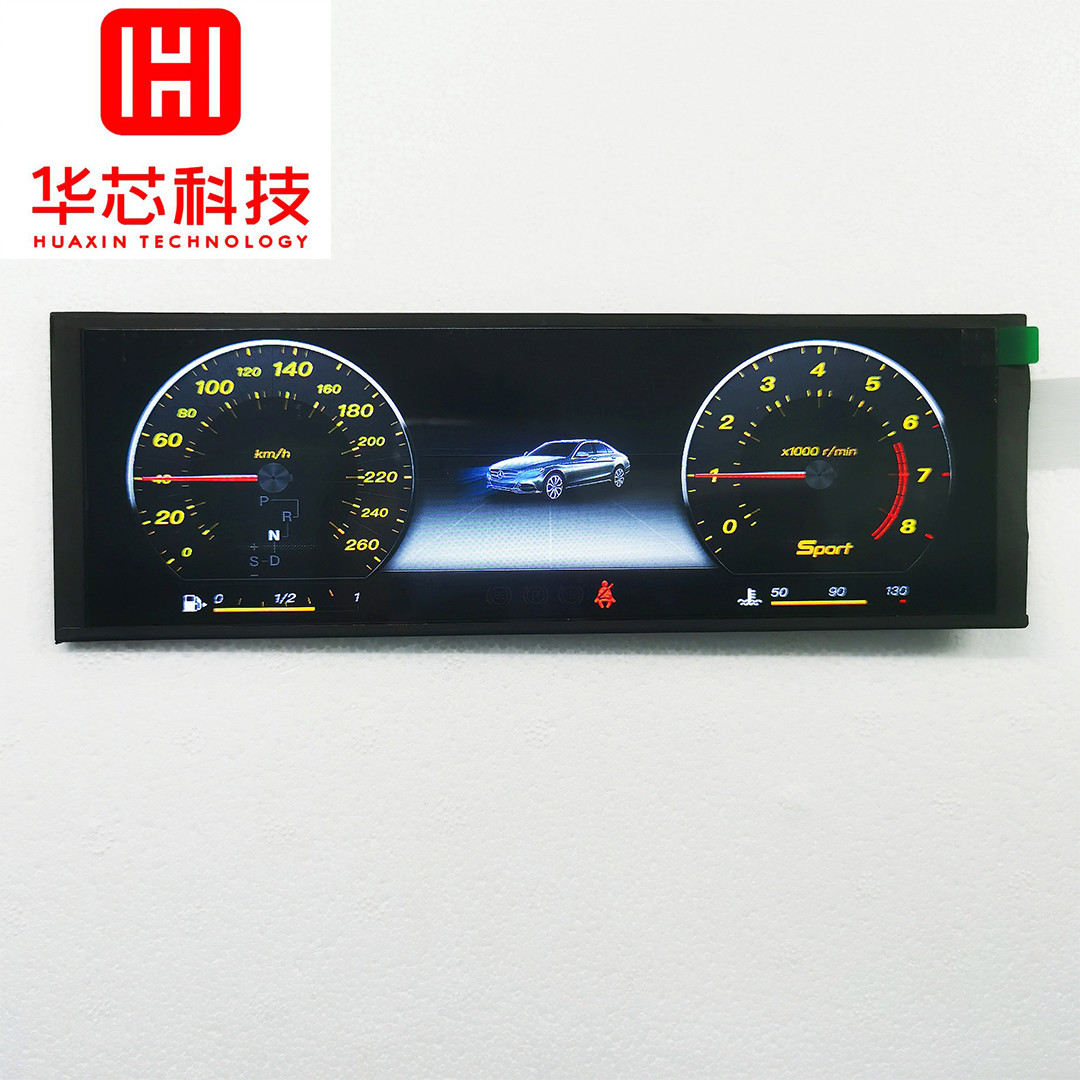

B:Product Picture
C: Drawing
-----------------------------------------------------
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
