ESHX114007S0 is 1.14 inch Bar Type TFT display module , 135X240
Resolution, 13 PINS SPI interface, brightness is 600cd/m2 TFT lcd,
Module Driver IC isST7789V and view angle is free applied for
electronic cigarette
A:Product Parameter
| ITEM | Specification |
| Model Number | ESHX114007S0 |
| Mechanical OutlineSize(W*H*T) | 1.14 |
| LCD Type | Normally Black |
| Drive element | TFT active matrix |
| Number of pixels | 135*3RGB(H)X240(V) |
| Pixel arrangement | RGB stripe |
| Pixel Pitch (W*H) | 0.1101*0.1038 |
| Active area | 14.86(H) * 24.91(V) |
| Mechanical OutlineSize(W*H*T) | 17.6*31*1.61 |
| Viewing direction | ALL O’CLOCK |
| LCM Driver IC | ST7789V |
| LCM interface | SPI 4 BIT Interface |
| Lcm pin count | 13 |
| Backlight leds | 1 |
| Backlight current | 20 |
| Backligh voltage | 3.2 |
| operating temperature | -20~70 |
| storage temperature | -30~80 |
| Luminance | 600 |

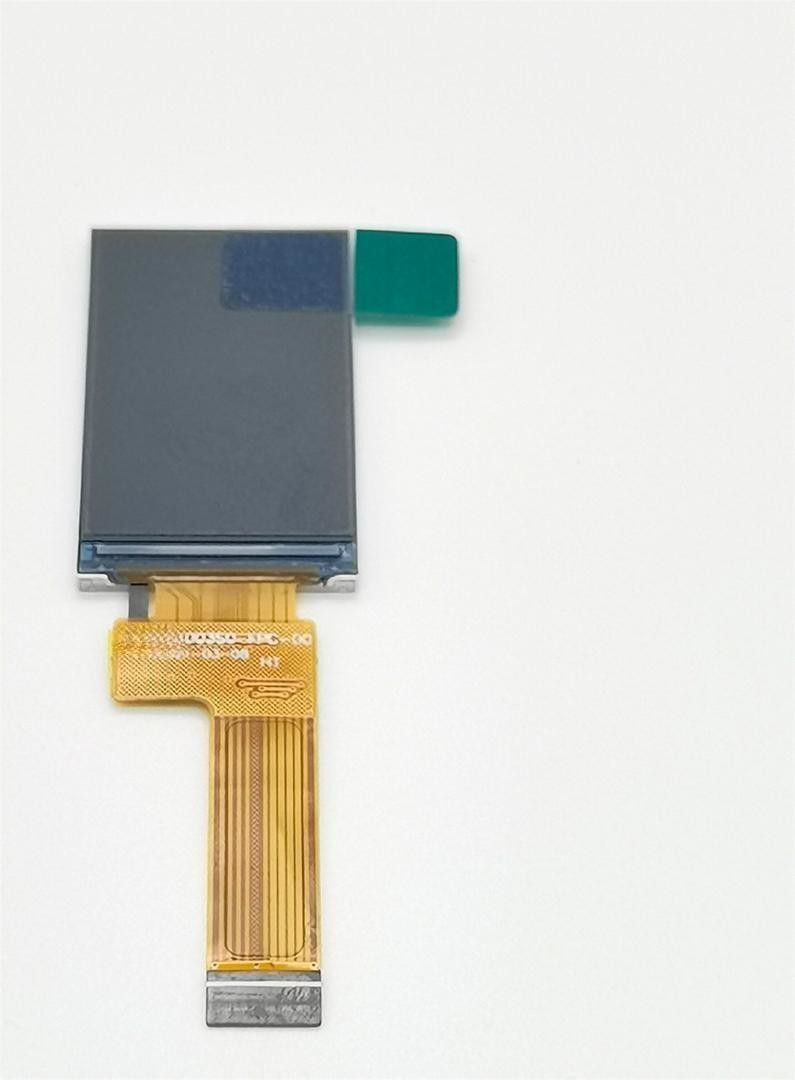

B:Product Picture
C: Drawing
-----------------------------------------------------
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
