ESHX040HCSA-03 is 4 inch TFT LCD display , 480X480 Resolution,40
PINS 18BIT RGB interface, brightness is 400 cd/M2 TFT lcd and lcd
Module Driver IC is ST7701S and View angle is free
A:Product Parameter
| Part No: | ESHX040HCSA-03 |
| Panel size | 4 inch TFT |
| LCD type | IPS |
| Module Size | 74.83*78.98*2.02 |
| Display Area | 71.86*70.18 |
| Number of Dots | 480*480 |
| View angle | ALL |
| Module Driver IC | ST7701S |
| CTP Driver IC | / |
| Interface Pins | 40 PINS 18BIT RGB |
| LED Numbers | 8LEDS |
| Luminance | 400cd/m2 |
| Operating Temp | -20~+70 |
| Storage Temp | -30~+80 |
| with or without TP | / |

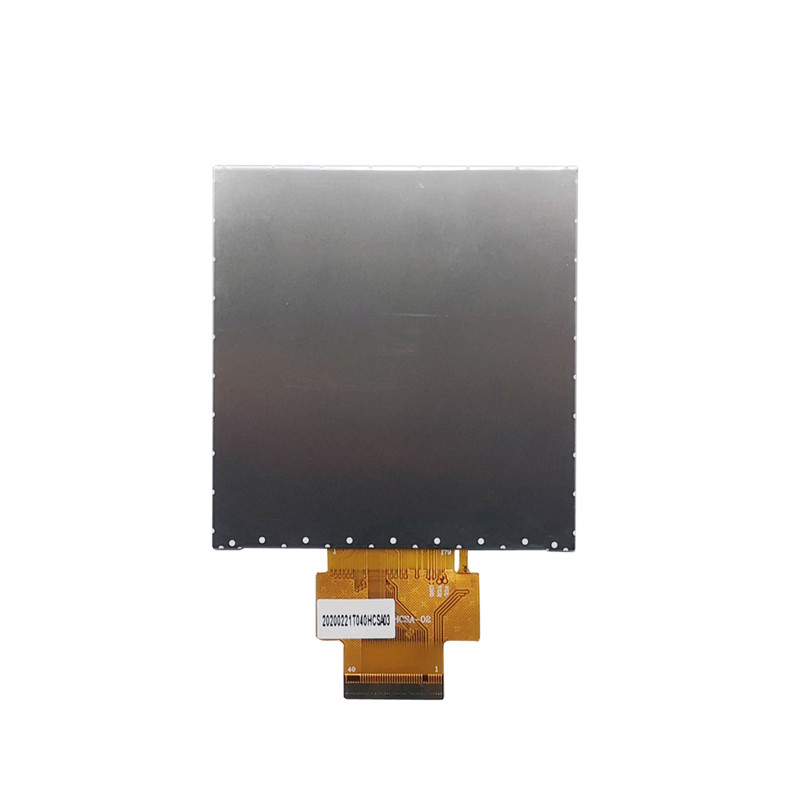

B:Product Picture
C:Drawing
D:TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
