ESHX7003LH80CG48 is 7 inch Uart tft display with RTP , 800 x480
resolution 10 pins TTL interface brightenss is 300 nit,
ESHX7003LH80CG48 has below feature
- Cortex-M4 MCU and 2D TFT graphic display accelerator
- 7.0-inch, 800*480 Pixels resolution, 16.7MColors, IPS-TFT-LCD
- Resistive touch screen.
A: Product Parameter
| Part No: | ESHX7003LH80CG48 |
| TFT size | 7 inch with RTP |
| lcd type | Uart display |
| Resolution | 800×480 |
| outline Size(mm) | 190.5mm (W)×105.4mm (H)×13.0mm |
| Display Area(mm) | 155.08mm (W)×86.92mm (H) |
| Serial mode | UART: ON=TTL/CMOS; OFF=RS232 |
| Touch panel | RTP |
| brightness | 300 c/d |
| FLash space | 128M bytes |
| interface | 10 pins uart |
| lCM interface | RGB |
| user interface | 10Pin_1.0mm latching socket for power supply and serial
communication |
| Flash | 16MBytes NOR Flash, for fonts, pictures and audio filesRewrite
cycle: over 100,000 tim |
| view angle | 70°/70°/50°/70° |

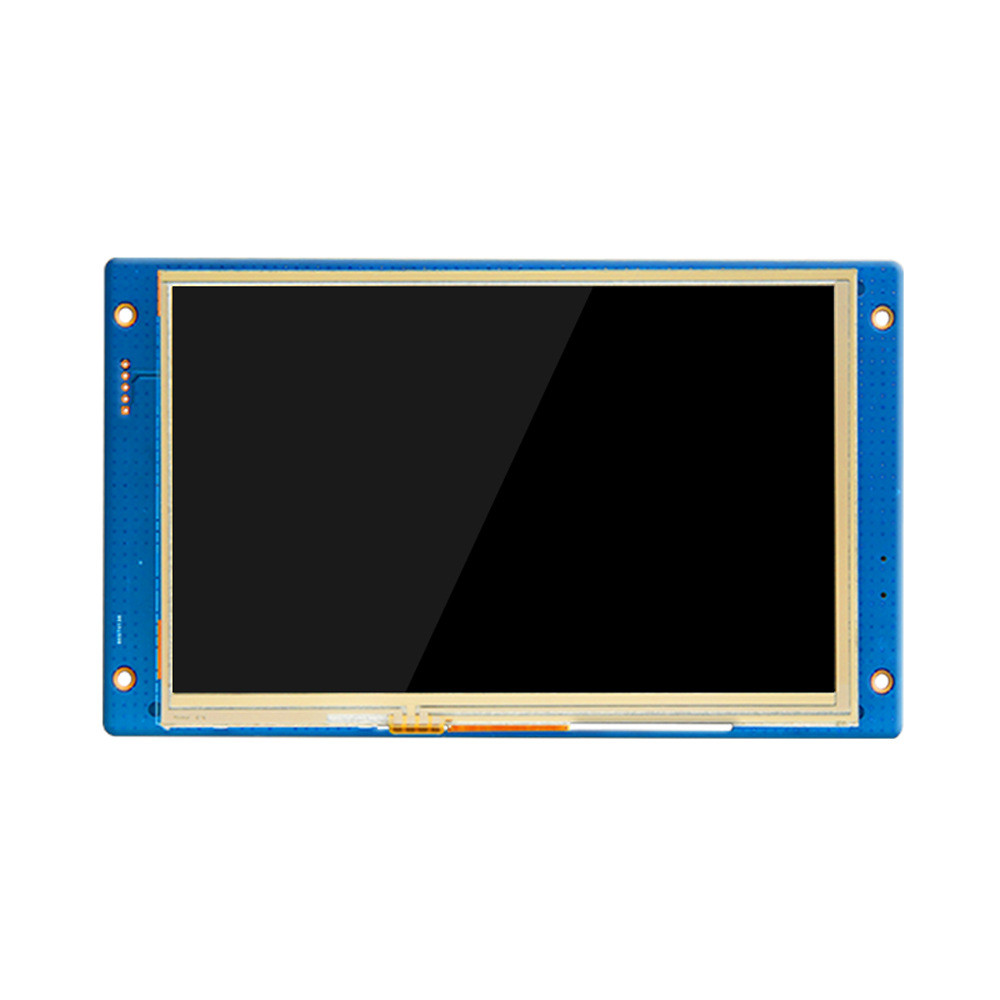

B: Product Picture
