ESHX070HD0050B-A is 7 inch lcd display, 800x1280 resolution,
300CD/M2, LVDS interface industrial lcd modules, white backlight
with 25pcs led and view direction is free
You can download full datasheet from this link:ESHX070HD0050B-A spec.pdf
A:Product Parameter
| Part NO. | ESHX070HD0050B-A |
| Panel size | 7 inch tft IPS panel |
| Resolution | 800X1280 |
| Viewing Angle | All View |
| Operation Temperature | -10~70 |
| Panel Size(mm) | 104.30(H) × 161.65(V) × 2.35(D) |
| Active Area (mm) | 94.20(H) ×150.72(V) |
| Pixel Pitch (mm) | 0.11775(H) ×0.11775(V) |
| Backlight | white 25pcs LED |
| Brightness(cd/m2) | 300CD/M2 |
| Interface | LVDS |
| drive IC | / |

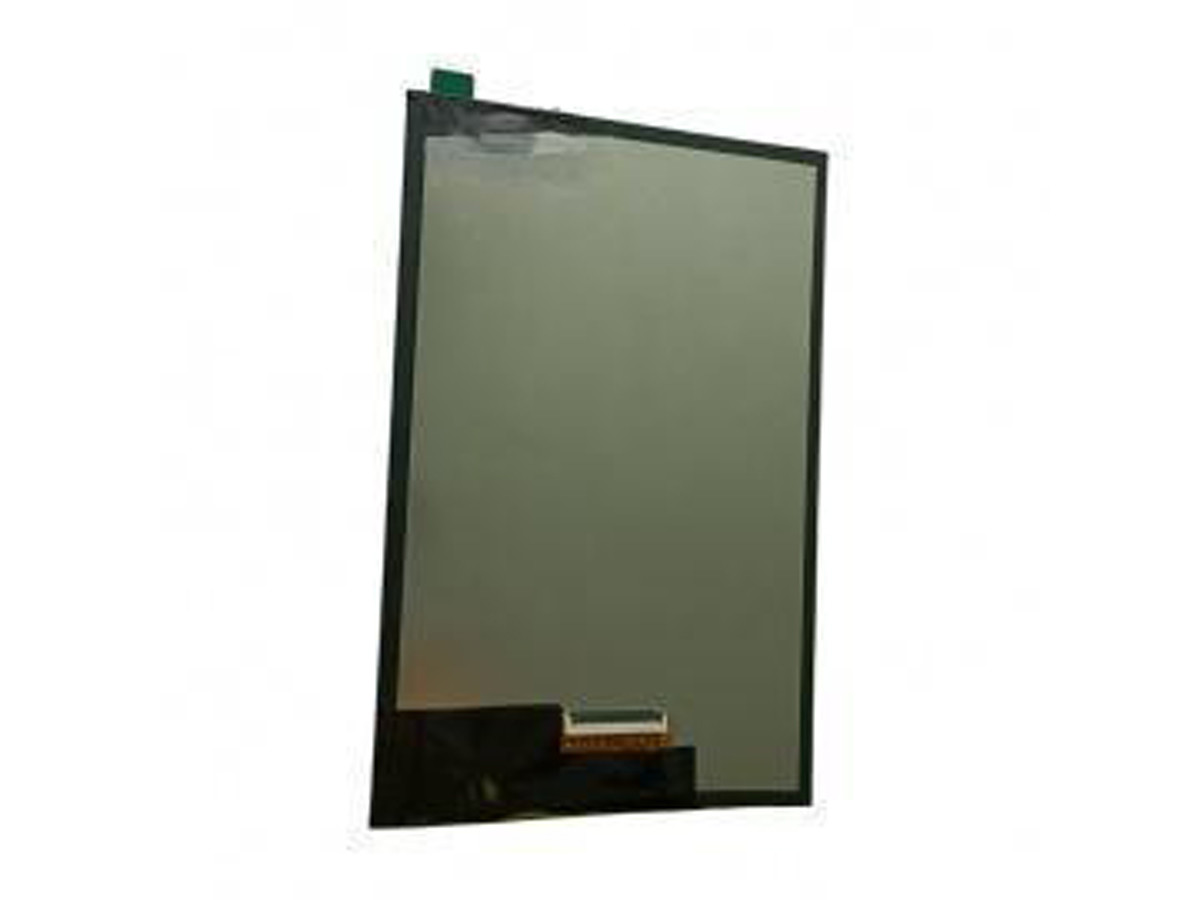

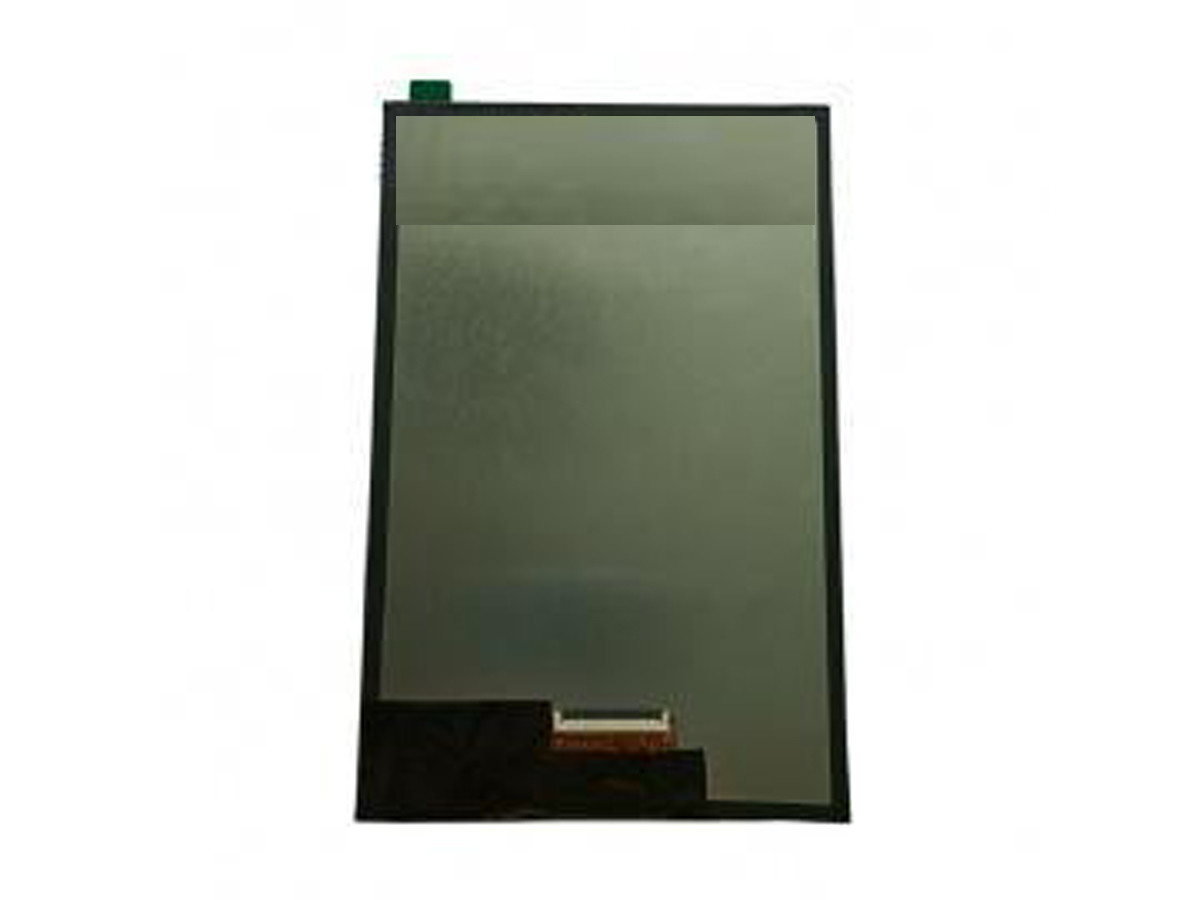

B:Product Picture
C: Drawing
D:TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
