ESHX067B-0100 is a color active matrix TFT (Thin Film Transistor)
LCD (liquid crystal display) that uses amorphous silicon TFT as a
switching device. This model is composed of a Transmissive type
TFT-LCD Panel, driver circuit back-light unit. The resolution of a
6.7’TFT-LCD contains 1920X1080 pixels, and can display up to
65K/262K /16.7M colors.
* Features
-Low Input Voltage: 3.3V (TYP)
-Display Colors of TFT LCD: 65K/262K/16.7M colors
Interface: 6/8BIT LVDS+EBD
for more details, pls kindly download complete specification ESHX067B-0100 SPEC.pdf
A. Product Parameter
| Part No: | ESHX067B-0100 |
| Panel Size | 6.7 inch TFT |
| Display Area(mm) | 148.32x83.43 |
| outline size(mm) | 161.12x97.68 |
| Number of Dots | 1920x1080 |
| View angle | all |
| Driver IC | / |
| Interface Pins | 40 pins 6/8BIT LVDS+EBD |
| LED Numbers | 32 |
| Luminance | 1000cd/m2 |

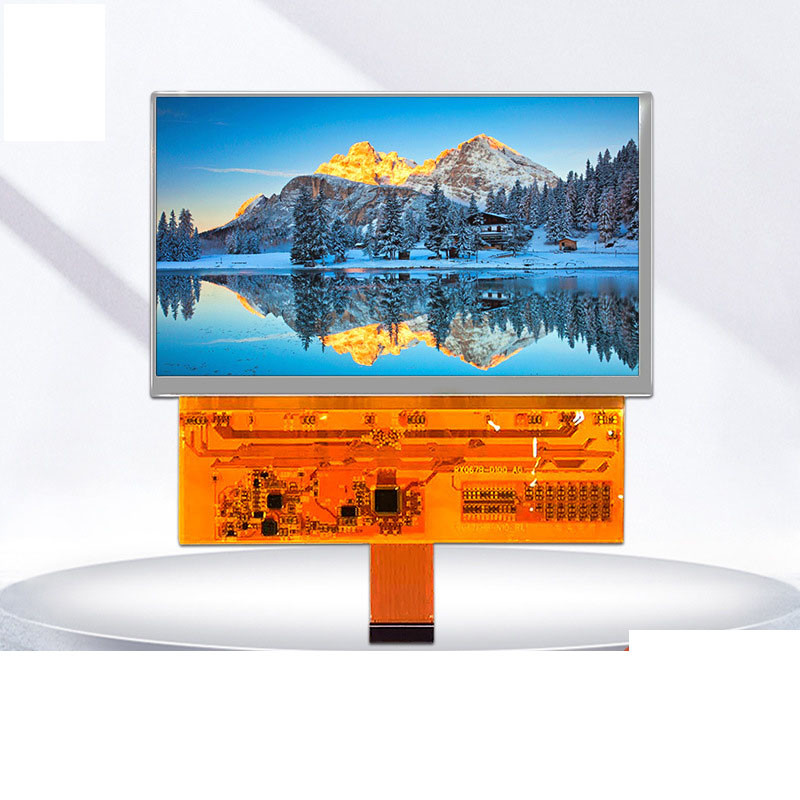

B.Product Picture
C. Drawing
D. TFT product knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
E: company information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has
effeciency and stable quality
4. professional engineers and production leaders who works in lcd
field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/ ISO13485/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development,
producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production capacity
Annual Production
Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
LCD Producton
Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit:thousands of
logarithms/Day |
LCM Producton
Capacity | 70 | 150 | 300 | 450 | 450 | Unit:Thousand
piece/Day |
Backlight Producton
Capacity | 100 | 200 | 300 | 500 | 500 | Unit:Thousand
piece/Day |
OLED Producton
Capacity | 10 | 20 | 30 | 40 | 50 | Unit:Thousand
piece/Day |
G: Product application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
H: FAQ
Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype
or WhatsApp.
Q: What is your warranty?
A: We provide one year warranty.
Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our superior
quality and service.
Q: How to place bulk order?
A: 1) Tell us model number, quantity, size and other special
requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.
Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL,
UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo
and sea cargo, direct line, air mail according to customers'
request.
Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for
incoming quality control, input process quality control, and final
quanltiy control for every piece. We follow QC test procedure, and
do 100% FQC to ensure your satisfication.
Q: Can you provide ODM service?
A: Yes! We can provide professional ODM service.
Q: What payment method do you accept?
A: T/T(bank transfer), L/C and paypal
Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept.
Follow up R.M.A. Items service and upload product fireware and app
for you download.
If you have any technical questions with the goods, please feel
freely to contact our technical support dept, or our sales
directly.
