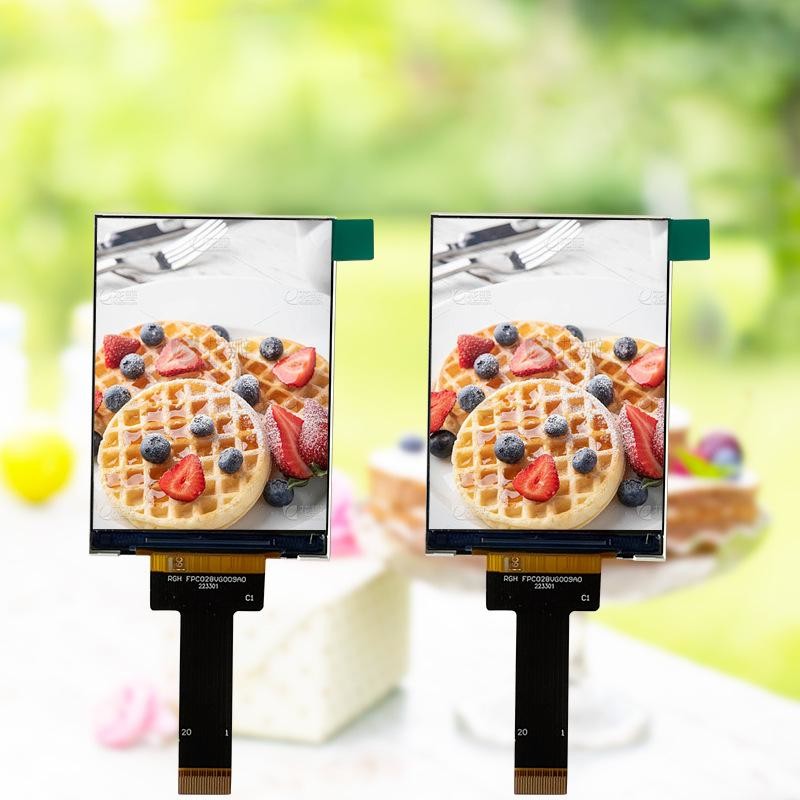

ESHX28VG009A is 2.8 Inch Bar Type TFT Display Module 480X(RGB)X640
Resolution 500 cd Free View Angle MIPI Interface
A:Product Parameter
| Part No: | ESHX28VG009A |
| display MODE | 2.8 inch bar type TFT display |
| outline size(mm) | 46.90(H)X66.55(V)X2.35(T) |
| AA size(mm) | 43.20(H)X57.60(V) |
| Display dots | 480X(RGB)X640 |
| View Angle | all |
| interface | MIPI |
| working temp | -20~70 |
| storage temp | -30~80 |
| Driving IC | ST7701S |
| Brightness | 500 c/d |
