A: Product Parameter

Display Size(Diagonal) Display size (diagonal) 2.01 inch
LCD type LCD display type α - Si AMOLED -
Display Mode Display mode IPS / Transmissive / Normally Black -
Resolution Resolution 240RGB x 296
Active Area Active area 32.04(H)×39.52(V) mm
Module Outline Module outline 33.74(H)×42.98(V)×0.65(T) mm
Display Colors Display colors 16.7M
Interface Interface QSPI
Driver IC Driver IC SH8501A
TP Viewing Area TP viewing area / mm
TP Outline(assembly) TP outline (assembly) / mm
Luminance on surface Brightness 500 cd/m²
View Direction Viewing direction All Best image
Contrast ratio Contrast ratio 200000:1
Color gamut Color gamut 100%
PPI Image pixel density 325 -
Window effect Window effect None - Integrated black -
Cover plate surface effect Cover plate surface effect None AF/AG -
Operating Temperature Operating temperature -20～70 °C
Storage Temperature Storage temperature -30～80 °C
Weight Weight TBD g

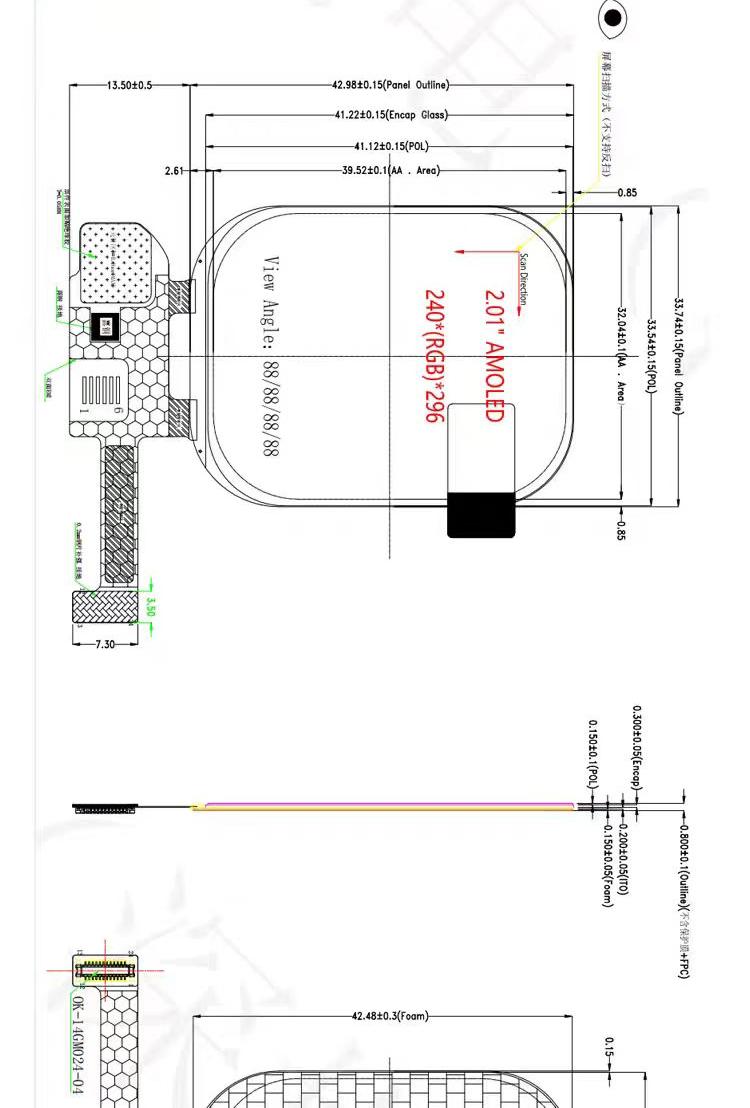

Appearance Dimension Diagram

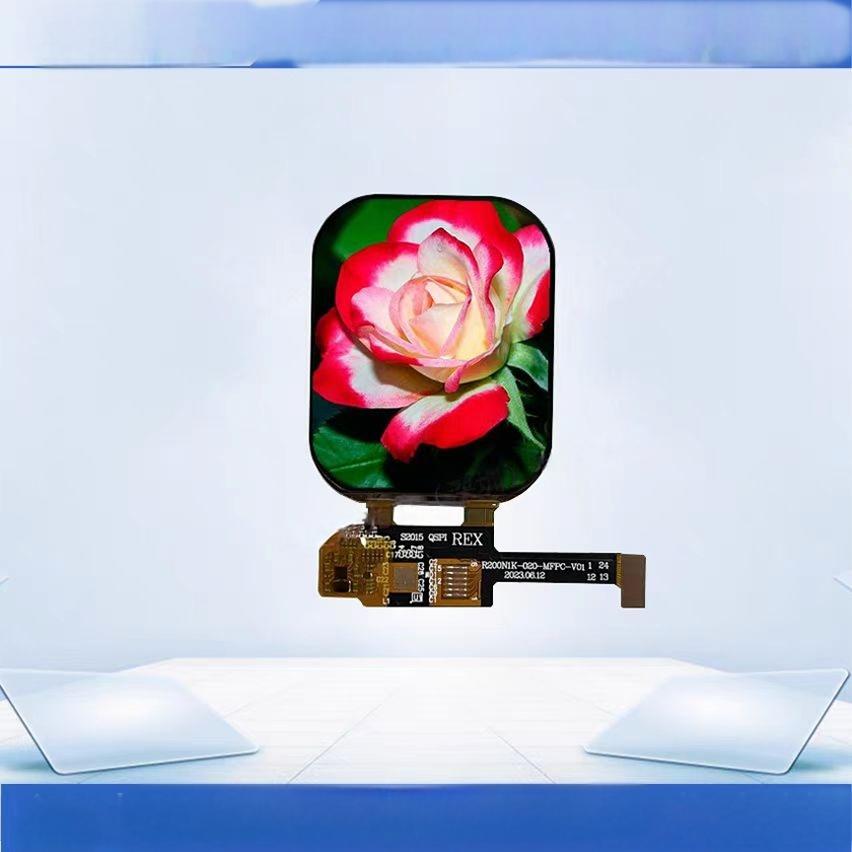

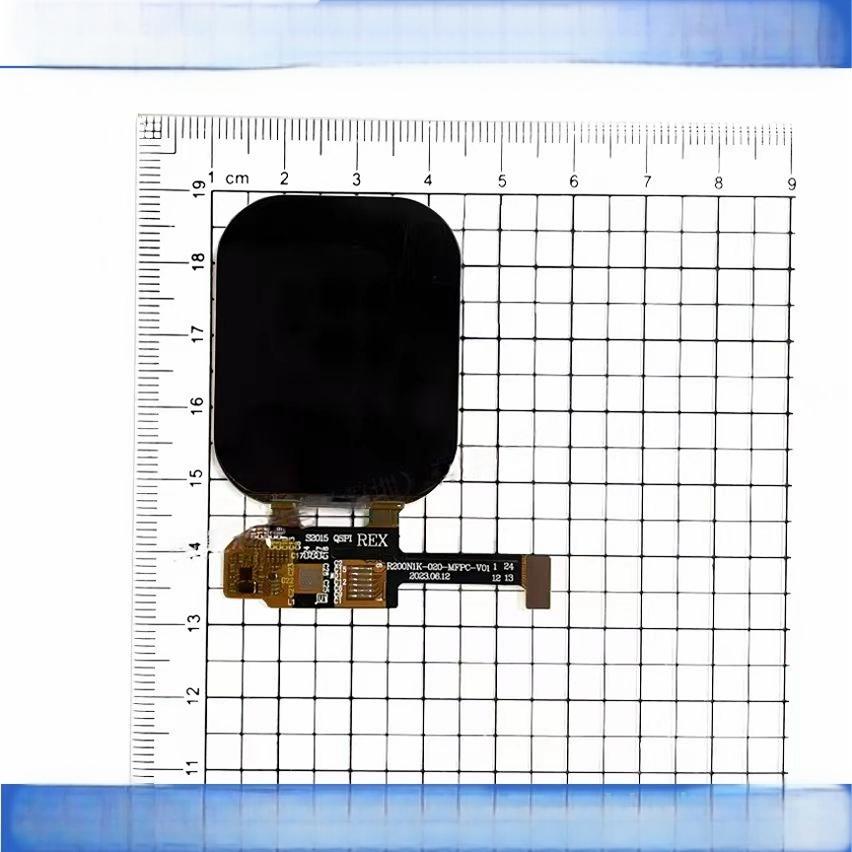

B:Product Picture

C:Drawing and Pin Definition

D: Oled Product Knowledge

OLED Advantages:

OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption

OLED Disadvantages

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT
