Product Parameters
Dimensions (Inch): 2.85 inches
Resolution (Pixel): 480X480
Display area: 70.13x70.13
Module size: 73.03(H)X76.48(V)x2.26(T)
Dot size (Pixel Pitch): 0.146mm
Display colors: 16.7M
Viewing angle: Full viewing angle (A11)
Contrast ratio: 1200:1
Hardware interface: RGB-MIPI
Pixel density (PPI): 173
Color gamut: 65%
Backlight configuration (BL): 4 lamps in parallel
Brightness: 450 nit
Connection method: Plug-in connection
Display driving voltage: 2.8~3.3V
Driver IC: ST7701S
Operating temperature: -20~70℃
Storage temperature: -30~80℃
Touch method (TP): G+FF

B: Product Picture

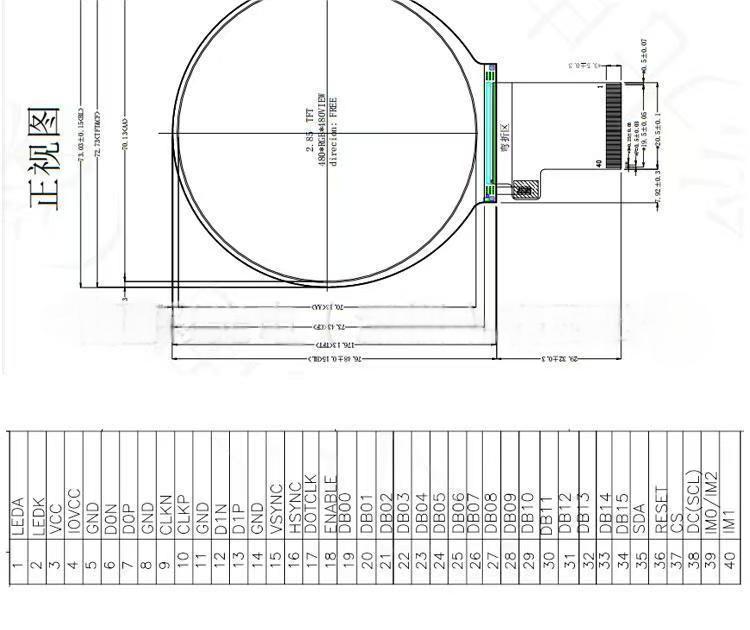

C: Drawing &Pin definition
