Product Description:
The driving method for this display can be either serial or
parallel, giving you the flexibility to choose the method that best
suits your needs. The display has a dimension of
102.80*41.90*9(mm), making it ideal for projects where space is at
a premium.
The display boasts a resolution of 128X64 dots, ensuring that your
content is displayed with clarity and precision. Whether you're
displaying text, graphics, or a combination of both, this display
will deliver exceptional performance.
Character LCD Display Modules have become an essential component in
many electronic products. They are commonly used in industrial
control panels, consumer electronics, medical devices, and many
other applications. The 2.2 Inch Dot Matrix LCD Display Module is
an excellent choice for anyone looking for a reliable and
cost-effective display solution.
With its compact size, flexible driving method, and high-resolution
display, this module is an excellent choice for a wide range of
applications. Whether you're designing a new product from scratch
or retrofitting an existing one, this display will deliver the
performance you need.
So if you're looking for a high-quality Character LCD Module, look
no further than the 2.2 Inch Dot Matrix LCD Display Module. With
its exceptional performance, reliability, and cost-effectiveness,
this display is sure to meet all of your display needs.
Features:
Product Name: Dot Matrix LCD Module
- Dots: 128X64
- Dimension: 102.80*41.90*9(mm)
- Item Color: Blue BG
- Operating Tem: -30℃~80℃
- Operating Voltage: 3.3V/5V
- Features: Industrial LCD Display, Industrial LCD Panel, Backlight
LCD Module

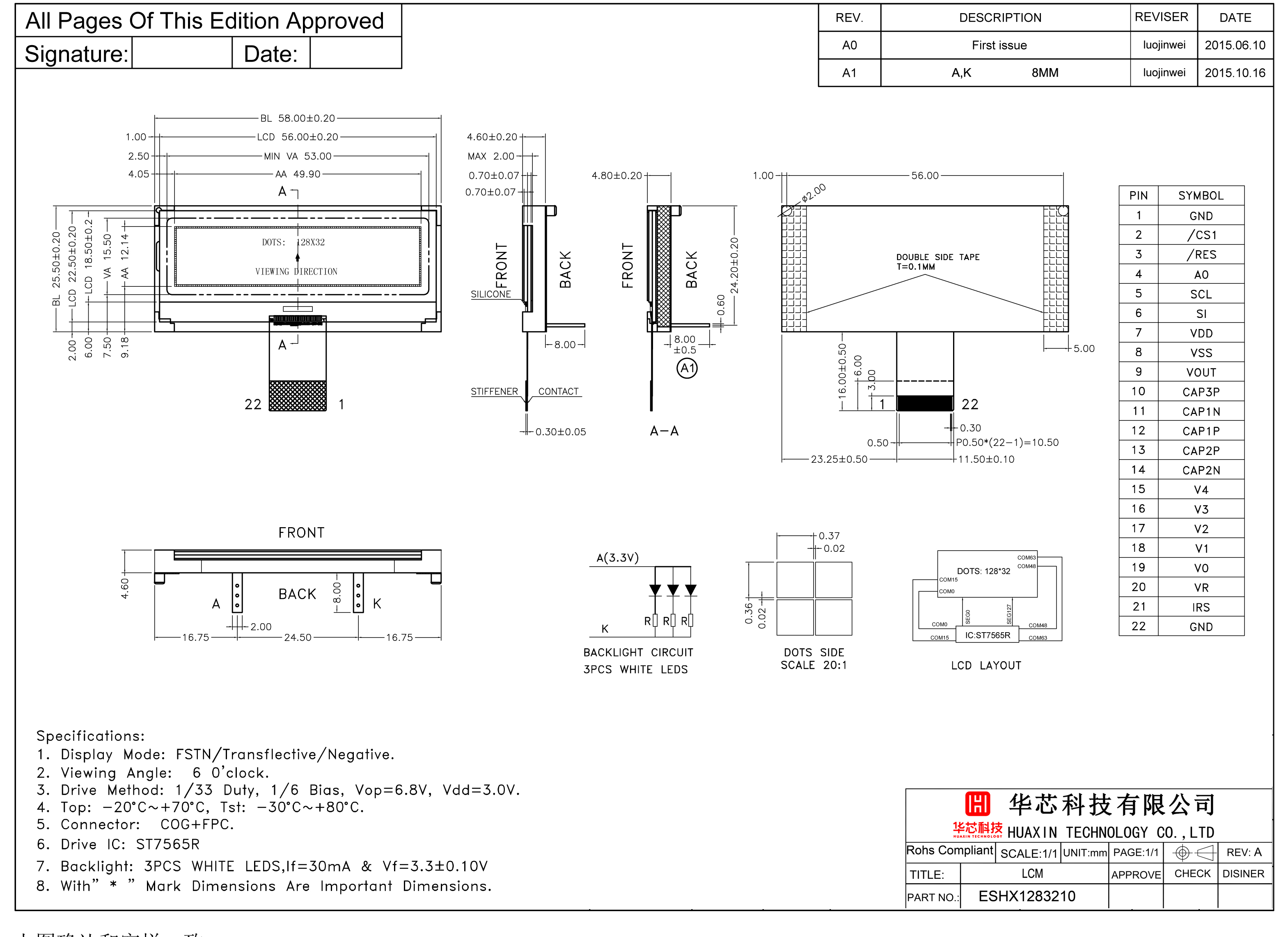

Technical Parameters:
| LCD Number | ESHX1283210 |
| display mode | 2 inch FSTN/negative/transmissive |
| DOTS | 128X32 |
| View angle | 6:00 CLOCK |
| MODULE SIZE(MM) | 58*25.5*4.8mm |
| active area(mm) | 53*15.5mm |
| Drive method | 1/33Duty,1/6 Bias,3.0v |
| Operating Temp: | -20°C~70°C |
| ASSEMBLY TYPE | COG+FPC |
| Driving IC | ST7565R |
| interface | 22 pins 4-wire SPI |
Applications:
The Dot Matrix LED Display is designed to operate at 3.3V or 5V,
making it compatible with a wide range of devices and systems. This
Industrial LCD Display is designed for use in harsh environments,
making it suitable for industrial applications. The module is
highly durable and can withstand vibration, shock, and extreme
temperatures. This module is ideal for use in applications that
require reliable and high-performance displays.
The Dot Matrix LCD Module is commonly used in a variety of
applications, including industrial control systems, medical
devices, consumer electronics, and automotive displays. The
module's compact size and low power consumption make it an ideal
choice for portable devices, such as handheld devices, GPS systems,
and MP3 players.
The module's dimensions of 102.80*41.90*9(mm) make it easy to
integrate into a variety of products and systems. The Dot Matrix
LCD Module is a cost-effective and reliable display technology that
provides clear and easy-to-read characters. Whether you are
designing a new product or upgrading an existing one, the Dot
Matrix LCD Module is an excellent choice for your display needs.
In summary, the HuaXin Dot Matrix LCD Module is a versatile display
technology that can be used in various industries. This
Alphanumeric LCD Display Module is designed for a blue BG
background and has a high resolution of 128X64 dots. The module
operates at 3.3V or 5V, making it compatible with a wide range of
devices and systems. The Industrial LCD Display is designed for use
in harsh environments, making it suitable for industrial
applications. The module's compact size and low power consumption
make it an ideal choice for portable devices.
Customization:
At HuaXin, we understand that every customer has unique needs and
requirements. That's why we offer Product Customization Services
for our Graphic LCD Display Module. Our team of experts can work
with you to create a custom LCD display module that meets your
specific requirements, whether it's a different size, resolution,
or functionality. Contact us today to explore the possibilities of
customizing your LCD display module with HuaXin.
Support and Services:
The Dot Matrix LCD Module product comes with the following
technical support and services:
- Full technical documentation and datasheets
- 24/7 technical support through online chat or email
- Product troubleshooting and diagnosis
- Repair and replacement services for defective products
- Product customization and development services
- On-site technical support and training for large orders
