ESHXMSP1601 is 1.6 inch Uart tft display 130x130 resolution , free view
direction , interface is Uart,115200(Bps) communication rate,
64~128m flash capacity
A:Product Parameter
| Part number | ESHXMSP1601 |
| Screen Size | 1.6(inch) |
| Type | TFT |
| Driver IC | SSD1283A |
| Resolution | 130*130 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Active Area (AA area) | 28.86x28.86(mm) |
| Module PCB Size | 35.40X53.82X1.6(mm) |
| Angle of view | >60° |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| VCC power voltage | 3.3V/5V |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 15(g) |

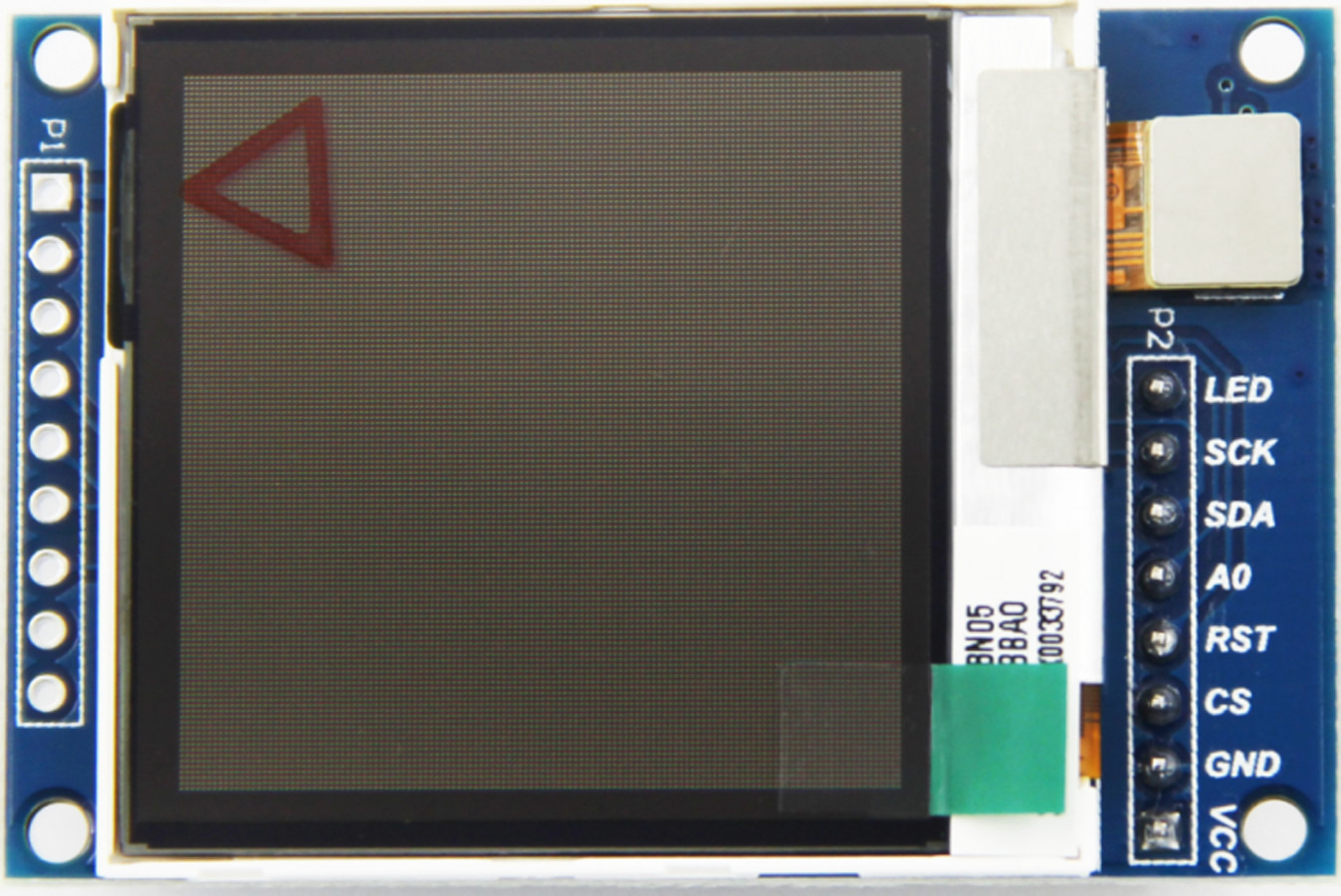

B:Product Picture
C:Drawing
.................................................................................................
D. TFT product knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
