ESHX070JDI4001-CTP is 7 inch TFT module with touch panel ,1200x1920 Resolution, 40 pins MIPI interface, brightness is 500 cd/M2 TFT display and lcd display Driver IC is R69429, view angle is free
A:Product Parameter
| Part NO. | ESHX070JDI4001-CTP |
| Panel size | 7 inch TFT display |
| Resolution | 1200x1920 |
| Viewing Angle | ALL |
| Operation Temperature | -10~60 |
| storage temperature | -30~70 |
| Panel Size(mm) | 97.3 (W) x159.4(H)x0.767 |
| Active Area (mm) | 94.5(W) × 151.2(H) |
| Brightness(cd/m2) | 500 CD/M2 |
| Interface | 40 pins MIPI |
| driving IC | R69429 |
| Touch panel | CTP |

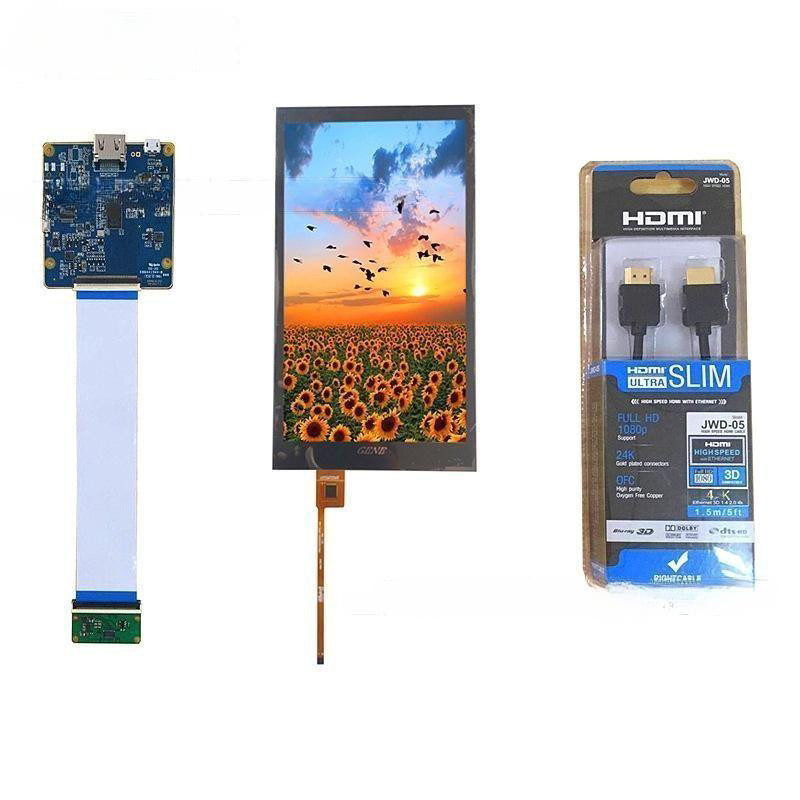

B:Product Picture
C:Drawing
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
